Remote Shell connection is a new feature in Exchange 2010 that enables the administrator to connect remotely to the Exchange server over a LAN (Local Area Network) or a WAN (WideArea Network). The name alone tells you that the remote shell is the part of a PowerShell command.

Before I explain how to manually connect to Exchange Server 2010, let’s recall certain PowerShell basics and discuss the key advantages of this remote shell connection.

With the release of Exchange 2007, we had two modes to access the Exchange database: the first being the Exchange Management Console and the second the Exchange Management Shell. The Exchange Management Console is nothing but GUI interfaces like the Exchange System

Manager in Exchange Server 2003. Exchange Management Shell is powered on Windows PowerShell Technology, which contains Exchange commandlets and custom scripts. If you see the Management Console, however, you will notice it is doing nothing more than driving out the output or input through PowerShell. So what does it mean, ‘Exchange Management console is relying on the PowerShell command only?’

Why do we need Windows PowerShell?

Consider this scenario:

I need customized scripts to address my organization’s requirements. (Something which is not possible from the GUI that we had in Exchange 2003.) In the past, we were forced to use third party software or VBScripts – both of which posed challenges. Now with the release of PowerShell, we can automate administrative tasks. Since PowerShell has a robust and flexible scripting platform, we can perform daily tasks that could be done with the Exchange Management Console (EMC) as well as those that could not. PowerShell reduces the complexity of VBScripts by using one line of code in the shell using an object model based on the Microsoft .Net platform.

Now let’s dive into our topic. If you want to connect remotely to the Exchange Server on Exchange 2003 and Exchange 2007, follow these easy steps:

  • Exchange 2003 – Install the Exchange System Management Tool on your workstations and carry out the task.
  • Exchange 2007 – Install the EMC and carry out the task.

What are the advantages of the Remote Shell?

1) You are not required to install EMC tool or Exchange Binaries.

2) This remote shell can be accessed only by authenticated users.

3) The Exchange remote access will not open until the session is open on the client computer; once you close the session, it will disconnect.

Note: All the configuration can be done by PowerShell commands. In other words, it offers a quick installation along with more secure access as compared to previous versions.

Supported Operating Systems:

1) Windows Server 2003 (SP2)

2) Windows Server 2008 (SP1, SP2 & R2)

3) Windows 7 Client

4) Windows Vista (SP1 & SP2)

5) Windows XP (SP3)

Prerequisites:

1) Windows Management Framework installed.

2) Enable Permission for those users.

3) Uninstall previous versions of Windows PowerShell (v2) and Windows Remote Management.

How to enable the remote shell:

1) Enable the user to access the remote shell.

2) Uninstall the previous Powershell and WinRM. (Optional)

3) Install the Windows Management Framework Core.

4) Set the execution policy to allow the script to be downloaded via browser by a trusted publisher.

5) Connect to Exchange remotely via remote shell command.

Each step broken down:

1) Enable the user to access the remote shell

  • Login to Exchange Server 2010
  • Open the Powershell Command and type the following:
  • Set-User UserName -RemotePowerShellEnabled $True

Example : Set-User remuse -RemotePowerShellEnabled $True

Figure1:

2) Uninstall the previous PowerShell and WinRM (Optional)

Click here to learn how to remove Windows PowerShell & WinRM on Windows Vista Windows

Server 2008, Windows Server 2003 and Windows XP.

3) Installation of Windows Management Framework

a) Download the Windows Management Framework Core.

b) Install the WMF Core and restart the computer.

4) Execution Policy needs to be set as Remote Signed:

Before you execute the remote shell command from the PowerShell, it is very important to set

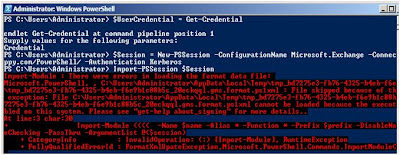

the execution policy to remote signed. (i.e All scripts, as well as configuration files, should be downloaded via the Internet and must be signed by a trusted publisher. By default it will be restricted, so you will get the following error message when you run Import-PSSession $Session)

Import-Module : There were errors in loading the format data file:

Microsoft.PowerShell, , C:\Users\Administrator\AppData\Local\Temp\tmp_bd7275e3-fb76-4325-b4eb-f6e9b1c88b5c_20eckqql.gms

\tmp_bd7275e3-fb76-4325-b4eb-f6e9b1c88b5c_20eckqql.gms.format.ps1xml : File skipped

because of the following validation exception: File C:\Users\Administrator\AppData\Local\Temp\tmp_bd7275e3-fb76-4325-

b4eb-f6e9b1c88b5c_20eckqql.gms\tmp_bd

7275e3-fb76-4325-b4eb-f6e9b1c88b5c_20eckqql.gms.format.ps1xml cannot be loaded because the execution of scripts is disabled on this system. Please see “get-help about_signing” for more details..At line:3 char:30

+ Import-Module <<<< -Name $name -Alias * -Function * -Prefix $prefix -

DisableNameChecking:$disableNam

eChecking -PassThru -ArgumentList @($session)

+ CategoryInfo : InvalidOperation: (:)[Import-Module], RuntimeException

+ FullyQualifiedErrorId :

FormatXmlUpateException,Microsoft.PowerShell.Commands.ImportModuleCommand

Figure 2:

Follow the steps below in order to allow the scripts to be downloaded:
1) Open the PowerShell command (ensure you have selected RunAs Administrator) and type the following:
Set-ExecutionPolicy RemoteSigned and press enter.
Figure 3:
If you fail to set the above command, you will see an ‘Access Denied’ error. In that situation, follow the below workaround:
HKLM\Software\Microsoft\PowerShell\1\ShellIds\Microsoft.PowerShell\ExecutionPolicy”=”R
emoteSigned”
Note: If “ExecutionPolicy” does not exist, create it as REG_SZ with value “RemoteSigned”
5) Connect remotely via Remote Exchange Management Shell:
a) Login to the local computer where you have installed the WMF.
b) Open the Powershell and type the following command:
$UserCredential = Get-Credential
Note: It will ask for user credential as per the below screen.
Figure 4:
c) Then type the following command:
$Session = New-PSSession -ConfigurationName Microsoft.Exchange -ConnectionUri http:///PowerShell/ -Authentication Kerberos
In my case:
$Session = New-PSSession -ConfigurationName Microsoft.Exchange -ConnectionUri http://e2k10.happy.com/PowerShell/ -Authentication Kerberos
Figure 5:
e) Then type: Import-PSSession $Session
Figure 6:
If you want to disconnect the session then type: Remove-PSSession $Session
Once you import the session, you are able to execute the Exchange commands remotely
Figure 7:
Reference Article:
Exchange Management Shell: http://technet.microsoft.com/en-us/library/bb123778.aspx
